In this test, the devices running the DEX Agent software will make an HTTP or HTTPS request to up to 5 separate addresses. These hosts can be on the local network or on the internet. This verifies connectivity to the specified URLs and records the response times for each host.
Connection requests to each host happens sequentially; if one fails, the others are still attempted.
¶ Configurable Test Parameters
Add up to 5 URLs to be used in the Application Test. URLs must include http:// or https:// - for example https://wyebot.com/

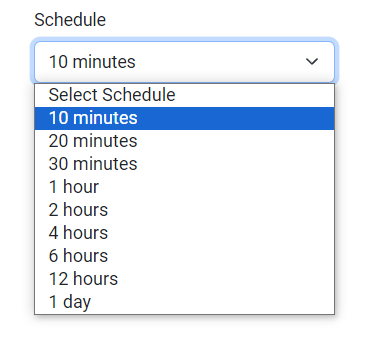

¶ Testing Schedule
The Application Test can be run on the following intervals:
¶ Maximum Number of Tests
To prevent the risk of overloading DEX Agent clients, a maximum of 4 Application Test profiles can be created.
¶ Outbound Firewall Requirements
| Protocol | Port | Hosts |
|---|---|---|
| HTTP | 80 | Defined by test config |
| HTTPS | 443 | Defined by test config |
| HTTP/HTTPS | User Defined Port |
Defined by test config |

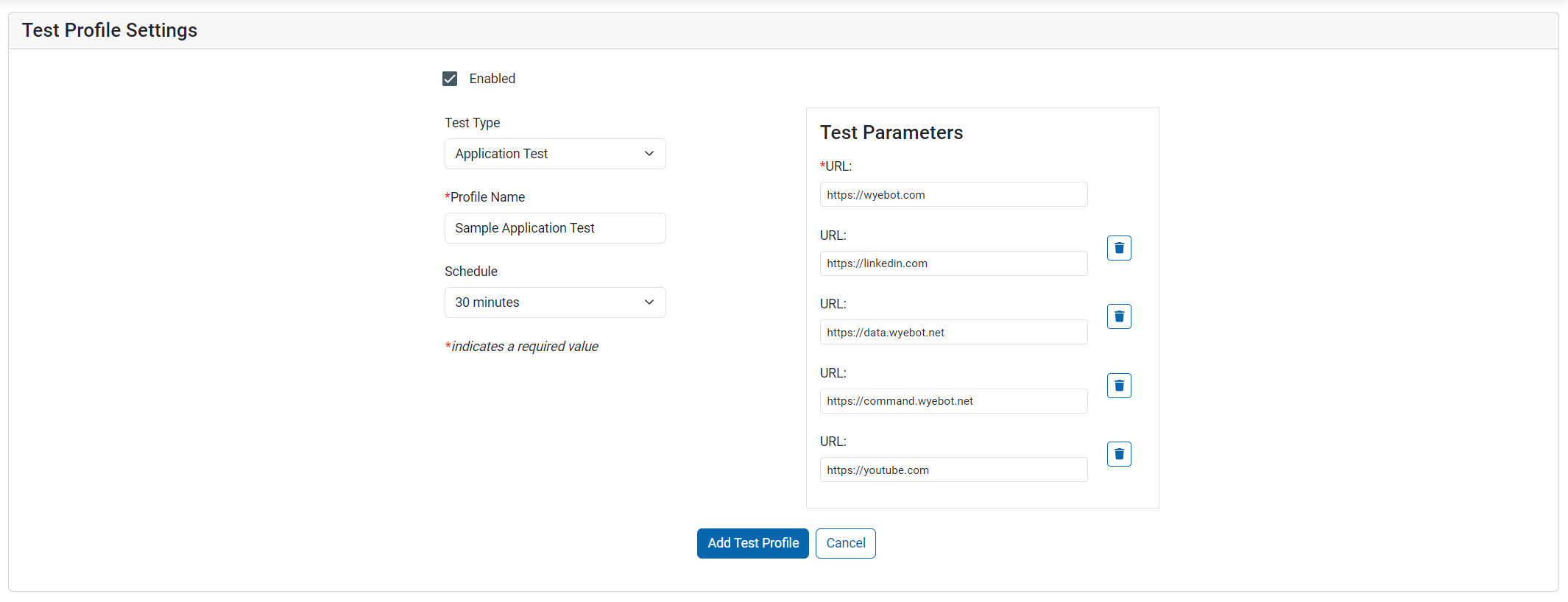

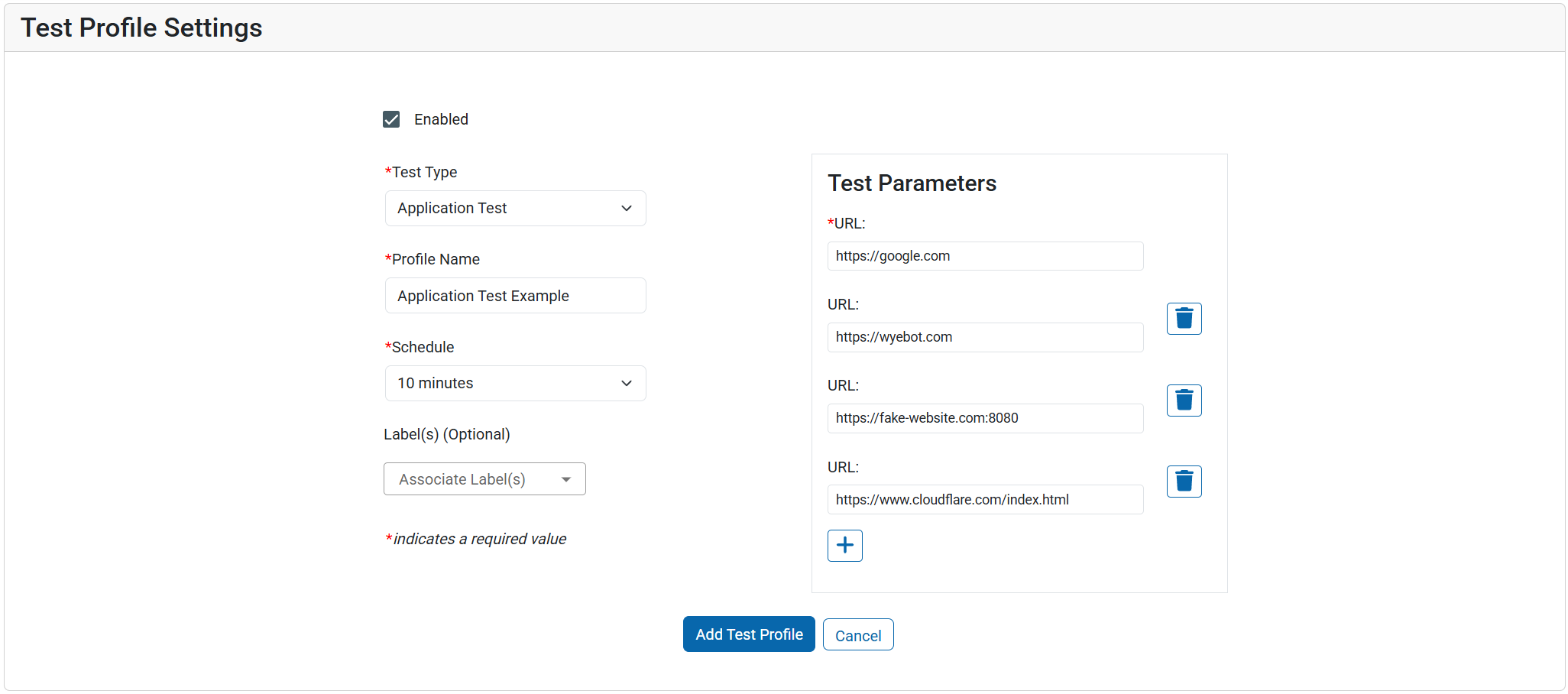

¶ Configuration example
