In this test, the sensor will make an HTTP or HTTPS request to up to 5 separate addresses. These hosts can be on the local network or on the internet. This verifies connectivity to the specified URLs and records the response times for each host.
Connection requests to each host happens sequentially; if one fails, the others are still attempted.

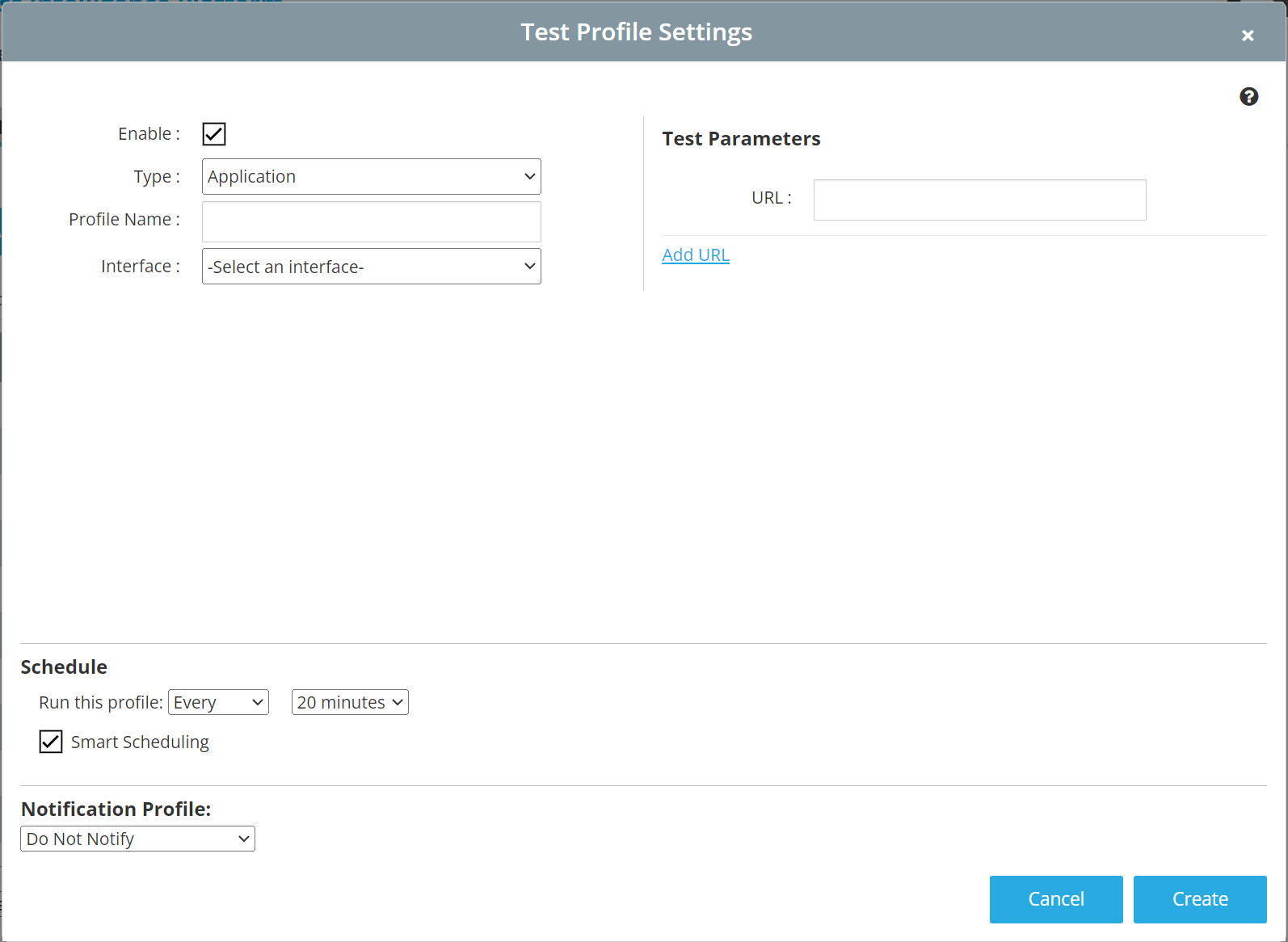

¶ Configurable Test Parameters
URLs to connect to
¶ Supported Interfaces
Wireless and Wired
¶ Supported Wireless Options
Auto - The sensor will connect to the closest AP based on current RF environment
Specific AP - The sensor will connect to the user-specified radio of an AP
Band Restriction - The sensor will connect to the strongest AP on specified frequency band
¶ Outbound Firewall Requirements
| Protocol | Port | Hosts |
|---|---|---|
| HTTP | 80 | Defined by test config |
| HTTPS | 443 | Defined by test config |
| HTTP/HTTPS | User Defined Port |
Defined by test config |
