In this test, the sensor will ping up to 5 user-specified hosts or devices. These can be devices on an internal network (a file server or printer, for example) or websites on the internet. This verifies network connectivity between the sensor and the remote device.
Pings to separate addresses happen sequentially; if one fails, the others are still attempted.

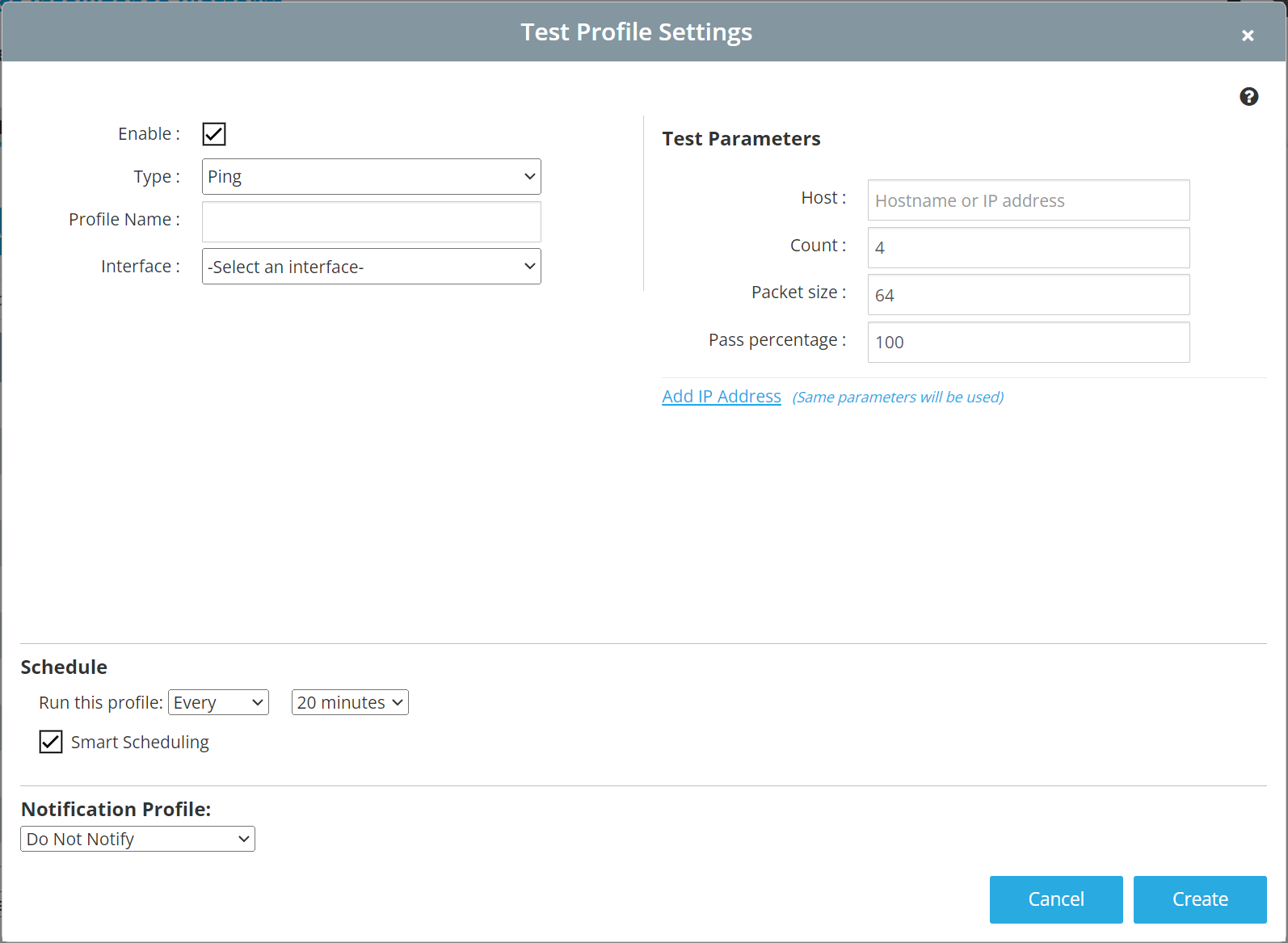

¶ Configurable Test Parameters
Host, Ping count, Packet Size and Pass Percentage.
¶ Supported Interfaces
Wireless and Wired
¶ Supported Wireless Options
Auto - The sensor will connect to the closest AP based on current RF environment
Specific AP - The sensor will connect to the user-specified radio of an AP
Band Restriction - The sensor will connect to the strongest AP on specified frequency band
¶ Outbound Firewall Requirements
| Protocol | Hosts |
|---|---|
| ICMP | Defined by test config |
