In this test, the sensor simulates bi-directional streams of video conferencing traffic to show the expected quality of a video call.
The test collects the following metrics:
- Speed (Kbps)
- Packet Loss (%)
- Latency (ms)
- Jitter (ms)
Using these metrics, a mean opinion score (MOS) is calculated, then translated to a human-readable value such as “Excellent”.

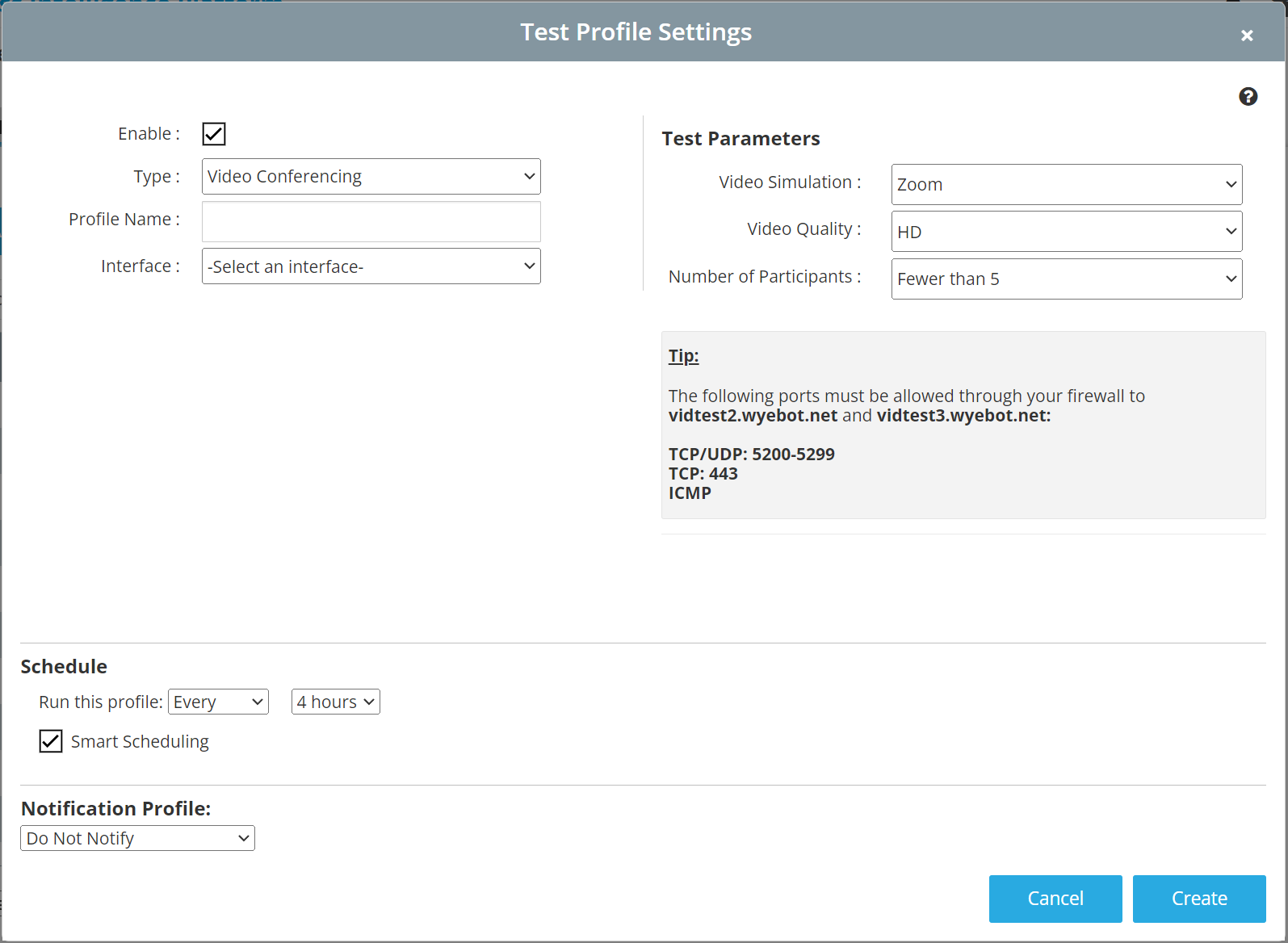

¶ Configurable Test Parameters
Video Simulation - Google Meet, Zoom, Webex, Microsoft Teams, or Custom
Video Quality - HD, SD, or Low
Number of participants - Fewer than 5, 5 or more
¶ Supported Interfaces
Wired and Wireless
¶ Supported Wireless Options
Auto - The sensor will connect to the closest AP based on current RF environment
Specific AP - The sensor will connect to the user-specified radio of an AP
Band Selection - The sensor will connect to the strongest AP on specified frequency band
¶ Outbound Firewall Requirements
| Protocol | Port | Hosts |
|---|---|---|
| TCP/UDP | 5201-5502 | vidtest2.wyebot.net, vidtest3.wyebot.net |
| TCP | 443 | Same as above |
| ICMP (optional) | N/A | Same as above |
