¶ Introduction
This article describes the configuration changes required to support web proxies with the Wyebot sensor. Web proxies are used within an IT network to manage their users web traffic, typically by filtering, caching or monitoring. In a standard design (no proxy server) all traffic from the Wyebot sensor will be sent directly to the Internet. In a proxied network, all traffic from a sensor on ports 443 and 80 must be sent to an intermediate device before it reaches the Internet. The intermediate device can be a proxy server. That proxy server is then responsible for sending the traffic to its intended destination.
¶ Instructions
¶ Create Wired Port Profile
To enable Proxy Support, you will first need to create a Wired Port Profile with your proxy server configuration.

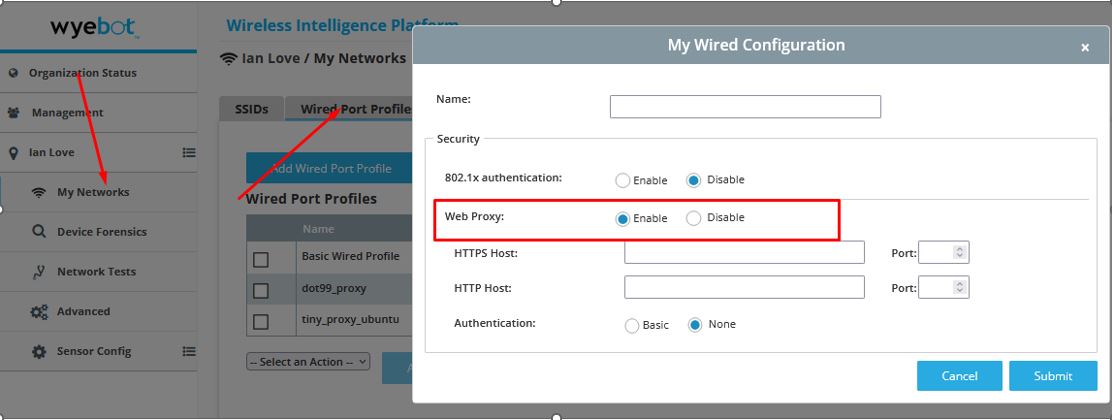

- Click on the My Networks tab
- Select the Wired Port Profiles tab
- Click on the Add Wired Port Profile button
- Use the radio button to enable Web Proxy
- Enter the HTTPS and HTTP hosts for your Proxy Servers.
- Enter the ports for HTTP and HTTPs
- If authentication is required, select Basic. Enter the username and password used for authentication.
- Finally create a name for this profile
- Click the "Submit" button
¶ Assign Wired Port Profile
After the port profile is created, it must be assigned to the sensors you wish to connect via proxy.
- Use the check box to select the port profile you want to assign.
- Use the drop down menu and select Assign. Click Apply.
- You will see a sensor selection window. Use check boxes to select each sensor that will use the proxy Wired Port Profile. The check box at the top can be used to select all sensors. When finished, click Apply.
