The Speed Test measures network throughput using internet based speedtest servers. We make use of an HTTP version of Ookla's Speedtest.net.
Labels can be used to set which devices this test will run on - Creating and Managing Labels

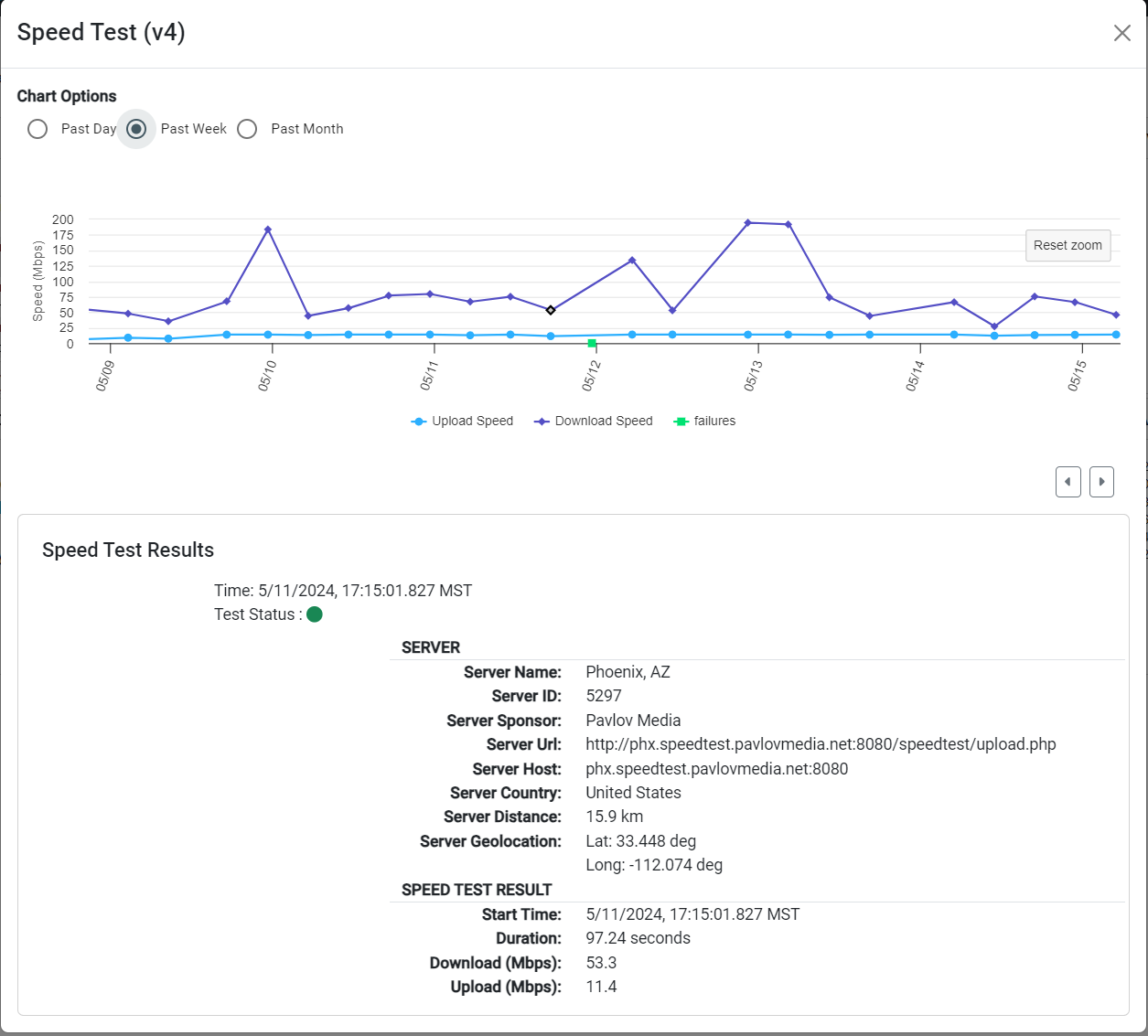

¶ Graph UI Example
¶ Testing Schedule
The Speedtest can be run on the following intervals:
¶ Maximum Number of Tests
To prevent the risk of overloading DEX Agent clients, a maximum of 3 Speedtest profile can be created.
¶ Outbound Firewall Requirements
| Protocol | Port | Hosts |
|---|---|---|
| TCP/UDP | 8080 | Any |
| HTTPS | 443 | *.speedtest.net |

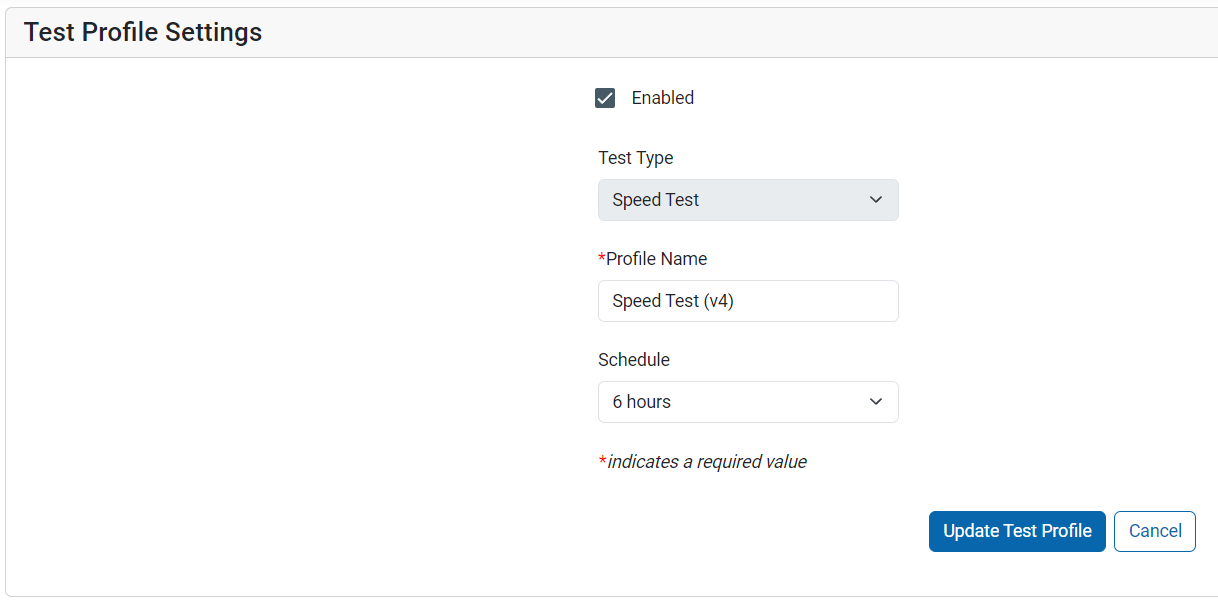

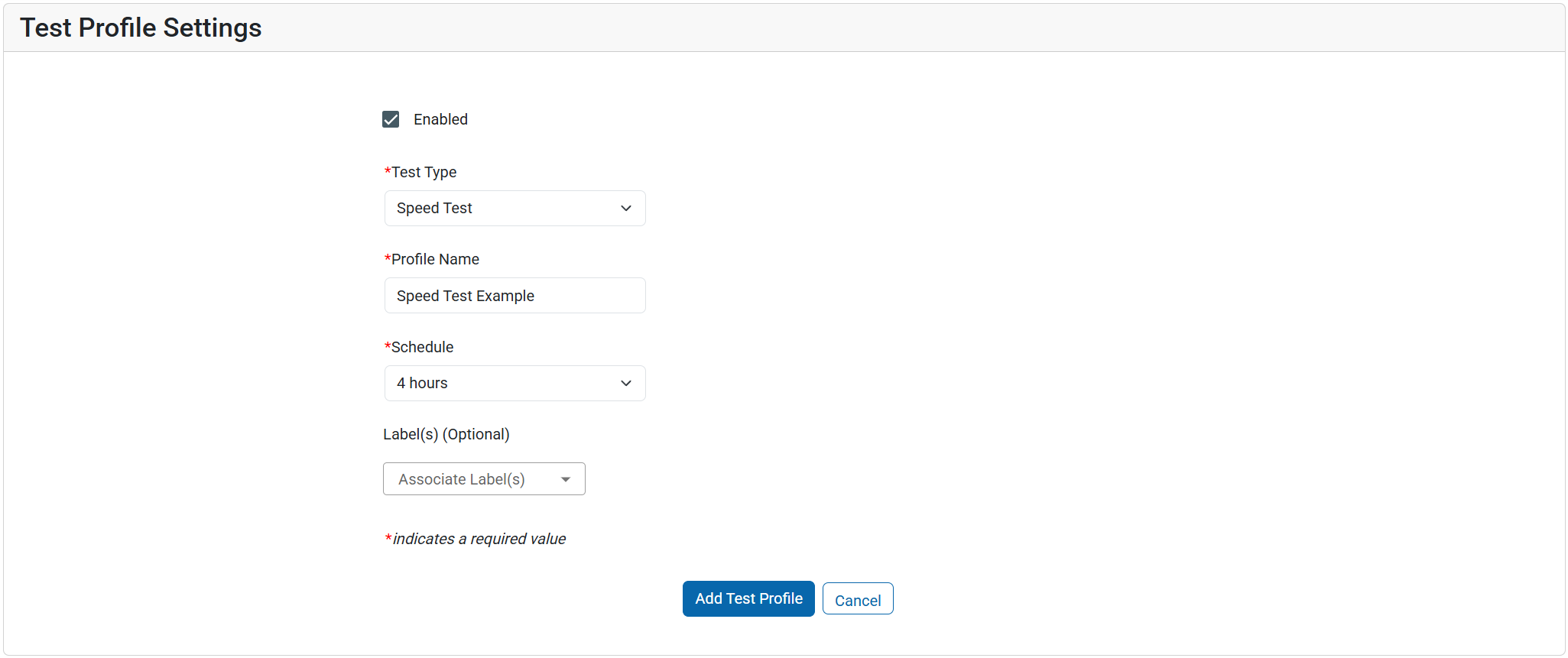

¶ Configuration example
